CG500/1000 Series Rental LED Screen Price:¥

500*500/1000mm LED Display Cabinet
P1.953mm, P2.5mm, P2.604mm, P2.976mm, P3.91mm, P4.81mm
Detachable Back Cover Box
Support Right Angle Installation for CG500
Indoor & Outdoor Available
Front or Rear Dual Maintanance for CG500

Online inquiry
Detailed content Specification parameter Product packaging

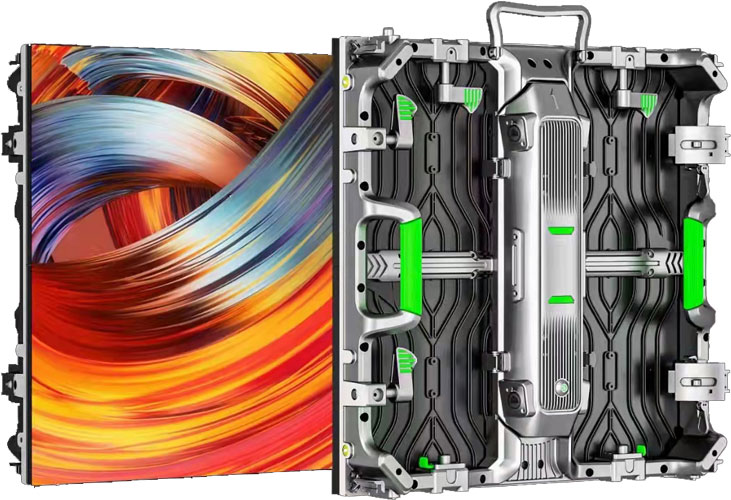

CG500/1000 Series Rental LED Screen

 CG500/1000  series rental LED display new design incorporates many aesthetic elements, adopts High strength die-casting aluminum,

only 7.5kg per cabinet, and better performance with high-definition visual display.



Lightweight and Thin

Portable and good stability with a weight of 7.5kg and thickness of 80mm. The feature of lightweight makes the LED display easy to carry,
transport and install, saving a good amount of money on your labor costs.



Perfect Structure


CAP has the domestic top design team, and the design innovation has its own unique philosophy, with a number of core technologies.
Innovative structural design, and avant-garde body lines, give you an extraordinary experience.



Support Right Angle Installation


Supports 90° right angle LED display installation to meet some special buildings and applications.

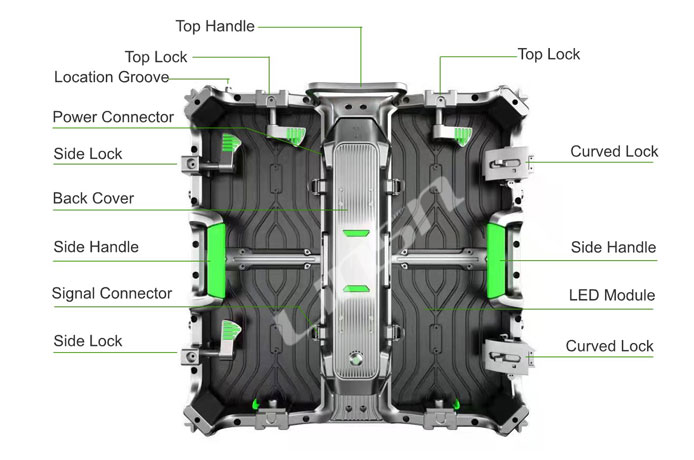

Detachable Back Cover


Adopts optimized control box with quick removable without any tools optional.

The back box (includes power supply and control cards)
is removable quickly for replacement and maintenance.

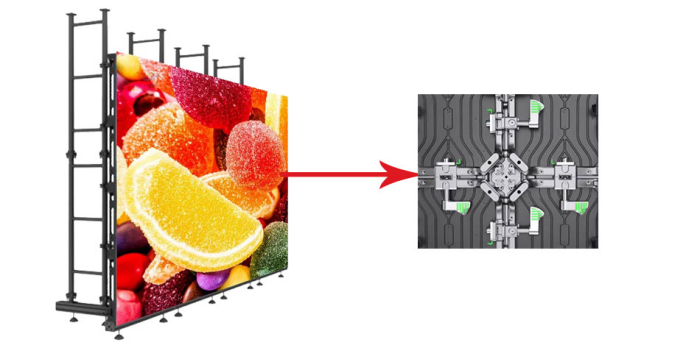

Front & Rear Maintenance


CAP LED CG500 Series rental LED display is a dual maintenance product, not only 100% front accessible but also can do rear service.
The LED panels are magnetic and can be removed by tools from the front side in 5 seconds. Easy and convenient, save your cost and labor!



Seamless Display and Better Visual Effects


High precision aluminum cabinet frame makes seamless splicing image and video display, offering you the perfect visual experience.

The picture quality confronts viewers with an entirely new sensory experience.

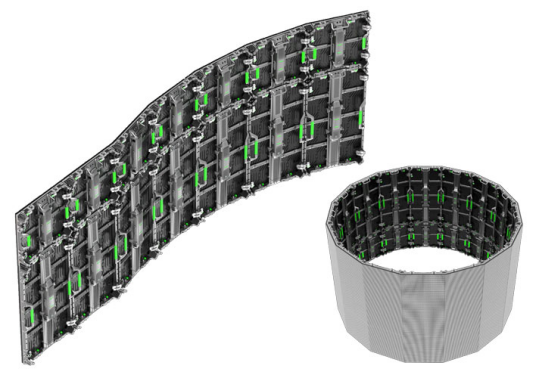

Curved Installation


To cater to the diverse requirements in the field of LED screens, the CG500/1000 series LED display is also available for curved screen after adding curved lock.

It can achieve 2.5° at intervals within the range of -10° to 10°, enabling both convex and concave configurations.

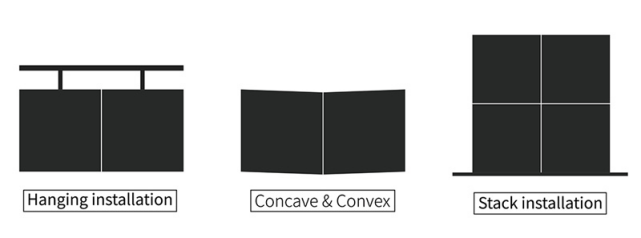

Multi Installation Way of Cabinet


Support 3 installation ways of cabinet with hanging installation, concave& convex installation, and stack installation.

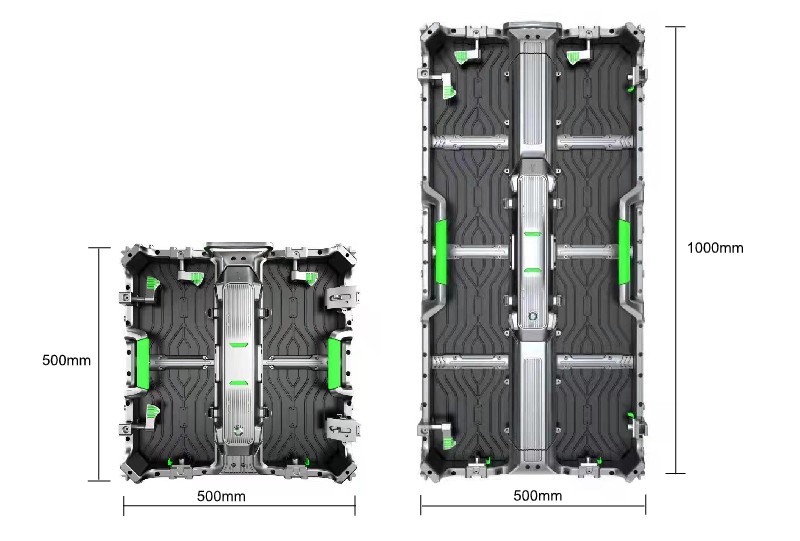

Cabinet Size

Cabinet Qty

Dimension

500*500mm

6in1

L760*W580*H730mm

500*500mm

8in1

L980*W580*H730mm

500*500mm

10in1

L1200*W580*H730mm

500*1000mm

4in1

L1100*W530*H730mm

500*1000mm

6in1

L1100*W760*H730mm

500*1000mm

8in1

L1100*W980*H730mm
