1000H Pro Series-indoor&outdoor rental led screen Price:¥

Indoor & Outdoor XR Curved Staging Concert LED Screen Product Features:
1.Perfect display effect-Refresh rate ≥3840Hz.
2.High protection-Corner protector &bottom design
3.Front&rear maintenance avaiable.
4.Fast Lock Design-one person operation.
5.500*500/1000mm LED Display Cabinet.
6.P1.953mm, P2.604mm, P2.976mm, P3.91mm, P4.81mm
7.Support Right Angle Installation
8.Frontal & Rear Service for Indoor&outdoor

Online inquiry
Detailed content Specification parameter Product packaging

CAP LED latest rental LED screen new design incorporates many aesthetic elements,

high-strength die-casting aluminum, and has better visual performance with high-definition.

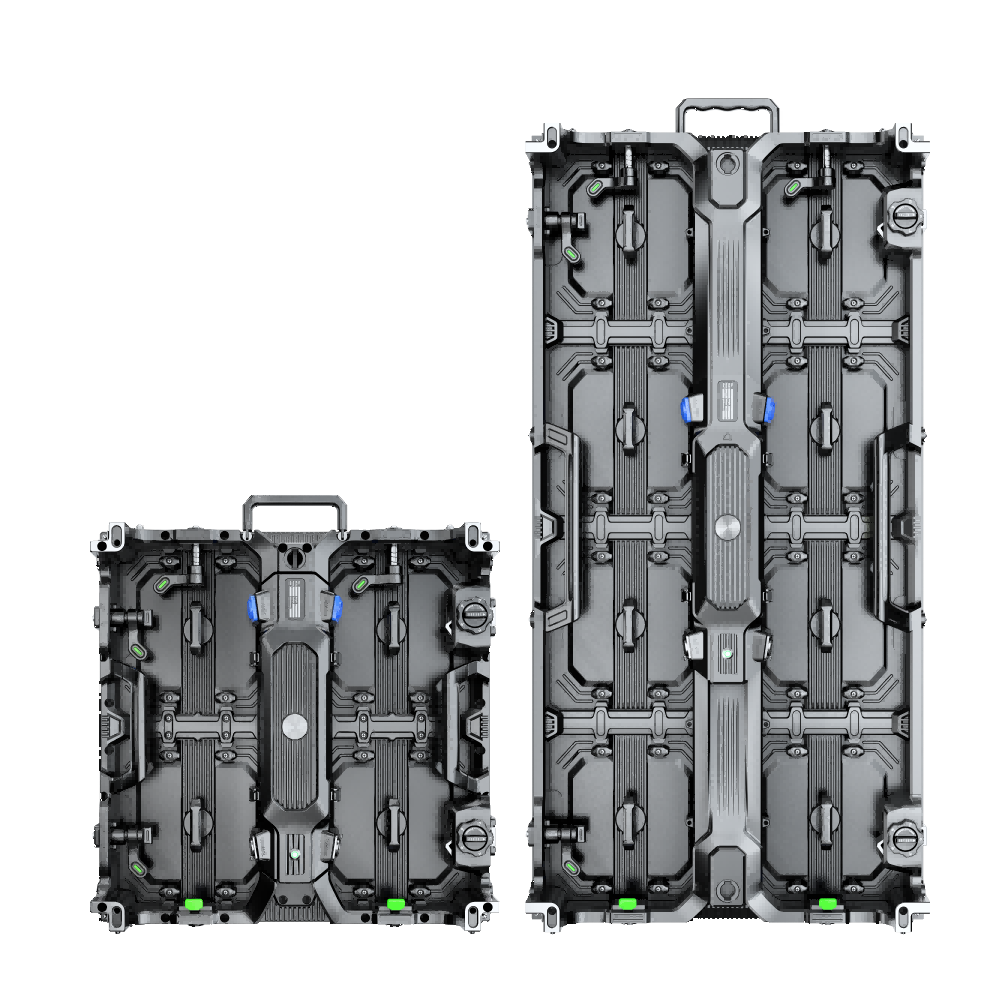

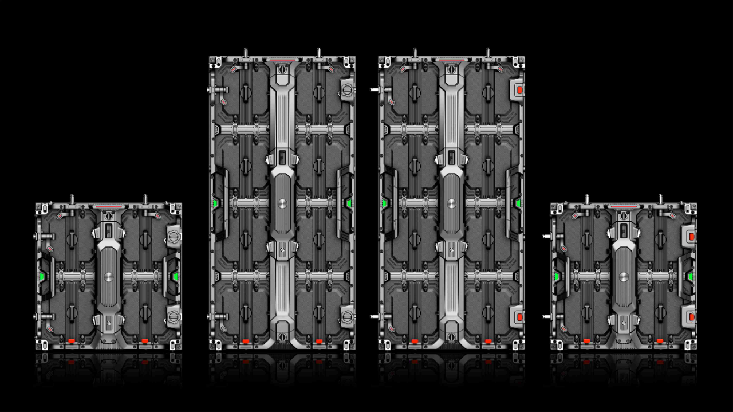

Light weight &Thin

Portable and good stability with weight of only 7.5kg for 500*500 cabinet and 12.5kg for 500*1000 cabinet and a thickness of 80mm.

lightweight makes the LED display easy to carry,transport and installation, saving a lot of money on your labor costs.

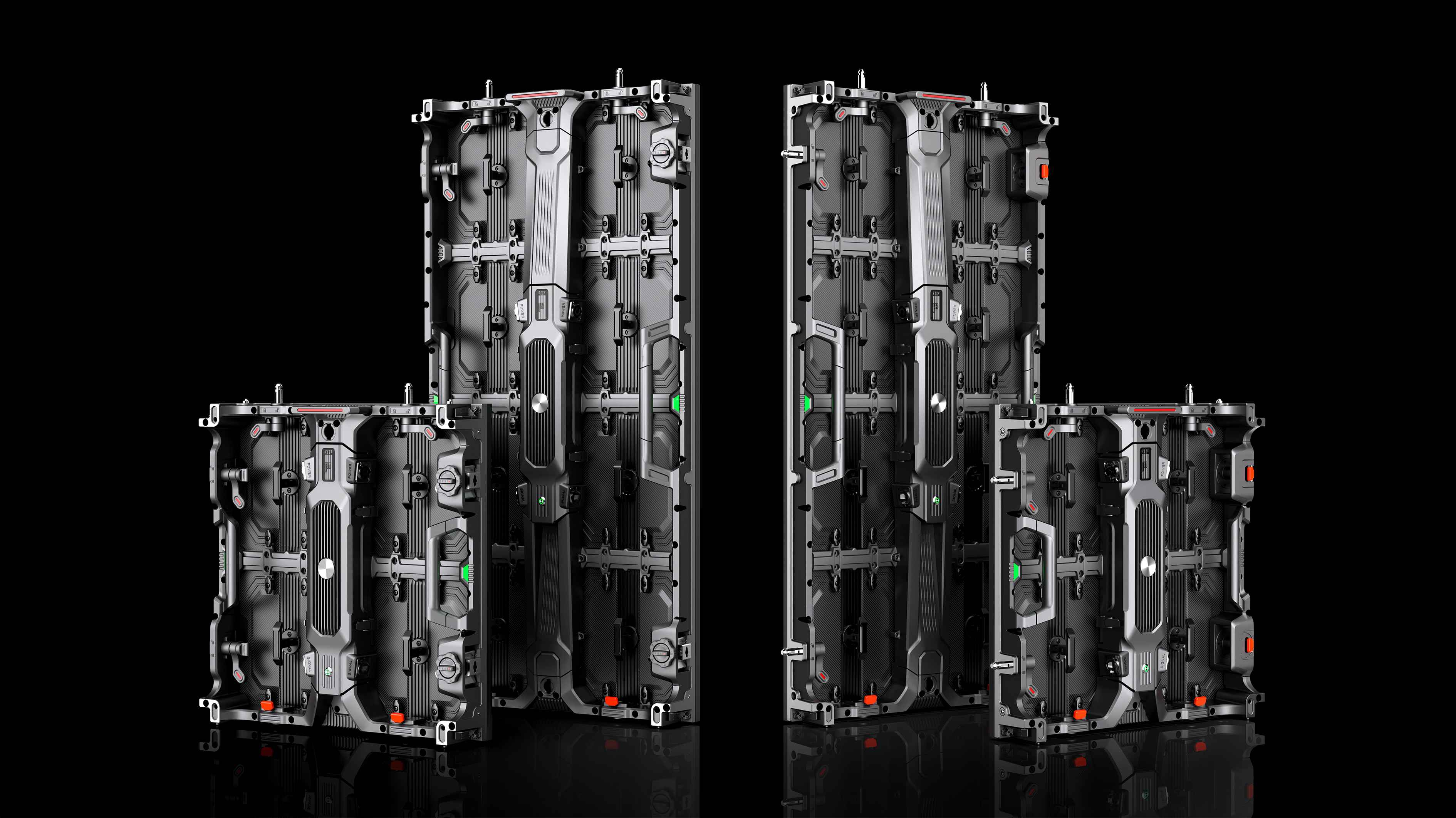

Perfect Structure

Innovative design,and avant-grade body lines,give you an extraordinary experience.

Support Right Angle Installation

 Supports 90° right angle LED display installation to meet some special request and applications.

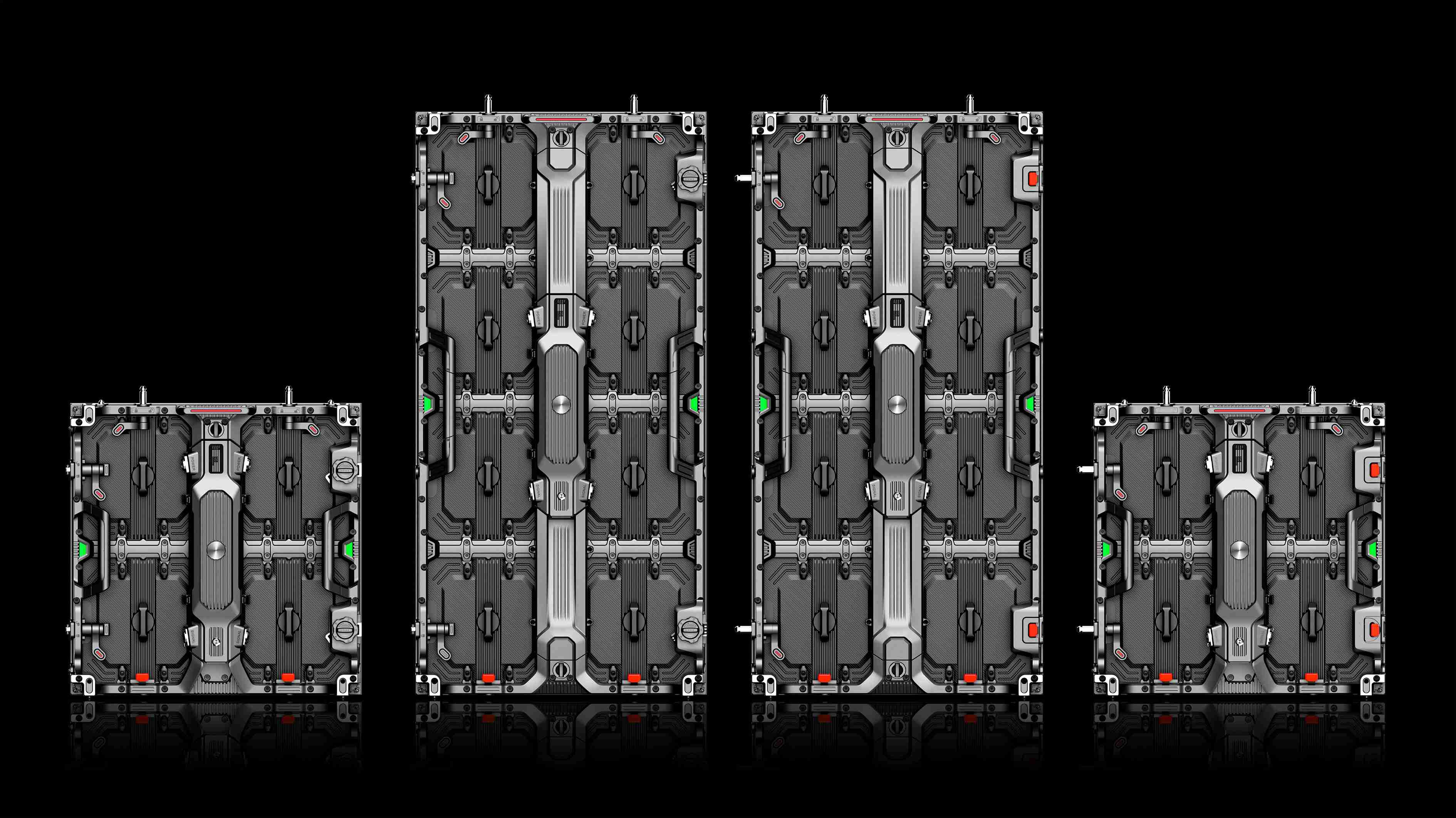

conbination installation with 500*500mm cabinet

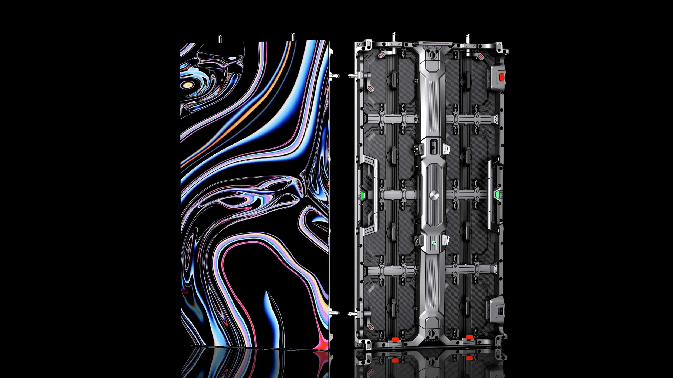

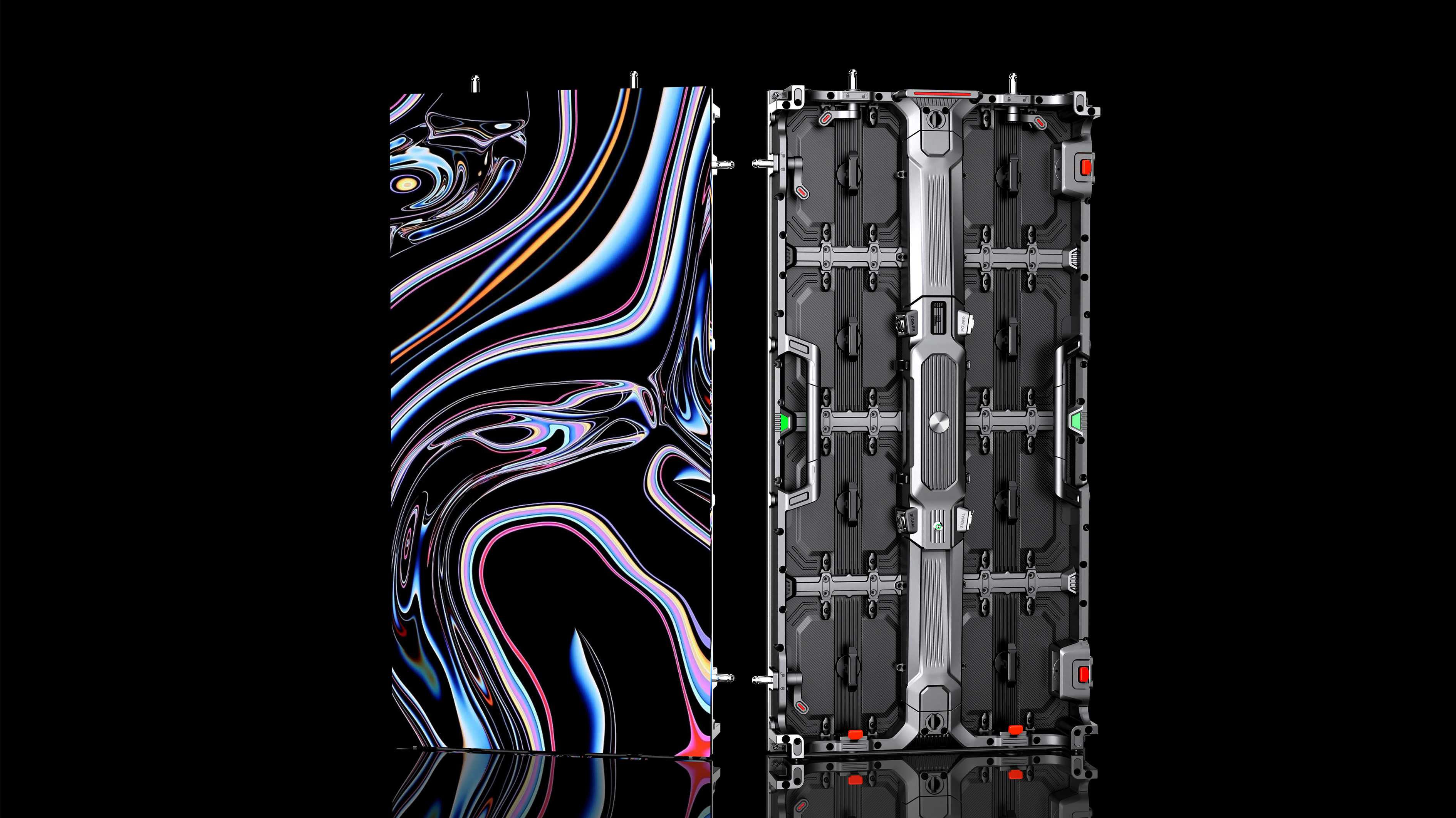

Frontal & Rear Service Indoor&Outdoor.

Designed for both frontal and rear service, the LED panels can be easily removed using tools from the front side within just 5 seconds.

This feature provides a hassle-free and time-saving solution, reducing costs and labor efforts. The panels are also magnetic,

enhancing convenience during maintenance and ensuring smooth operation.

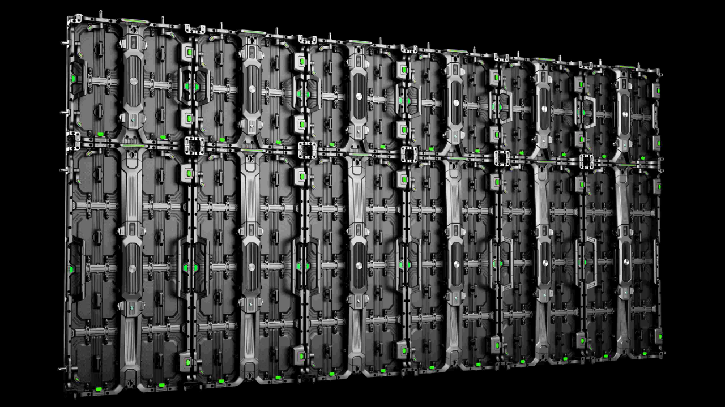

Seamless Display and Better Visual Effects

The high-precision aluminum cabinet frame enables seamless splicing of images and videos,

presenting you with the perfect visual experience you desire from any angle.

This impeccable construction ensures that viewers are confronted with an entirely new sensory experience, characterized by exceptional picture quality.




Convex&Concave Installation

To cater to diverse requirements, our LED display is specifically designed for curved installations. It can be curved at 5° intervals, ranging from -10° to 15°.

To create a circular LED display, a total of 36 cabinets are required. This design allows for flexibility and creativity in shaping your display to suit your specific needs.



Corner Protector for LEDs

To ensure the utmost protection for the LED display during transportation, installation, and other operations,

our product is equipped with corner protections in each corner. This thoughtful design feature eliminates

the risk of any damage to the LED display, providing you with peace of mind and ensuring its durability throughout its lifespan.

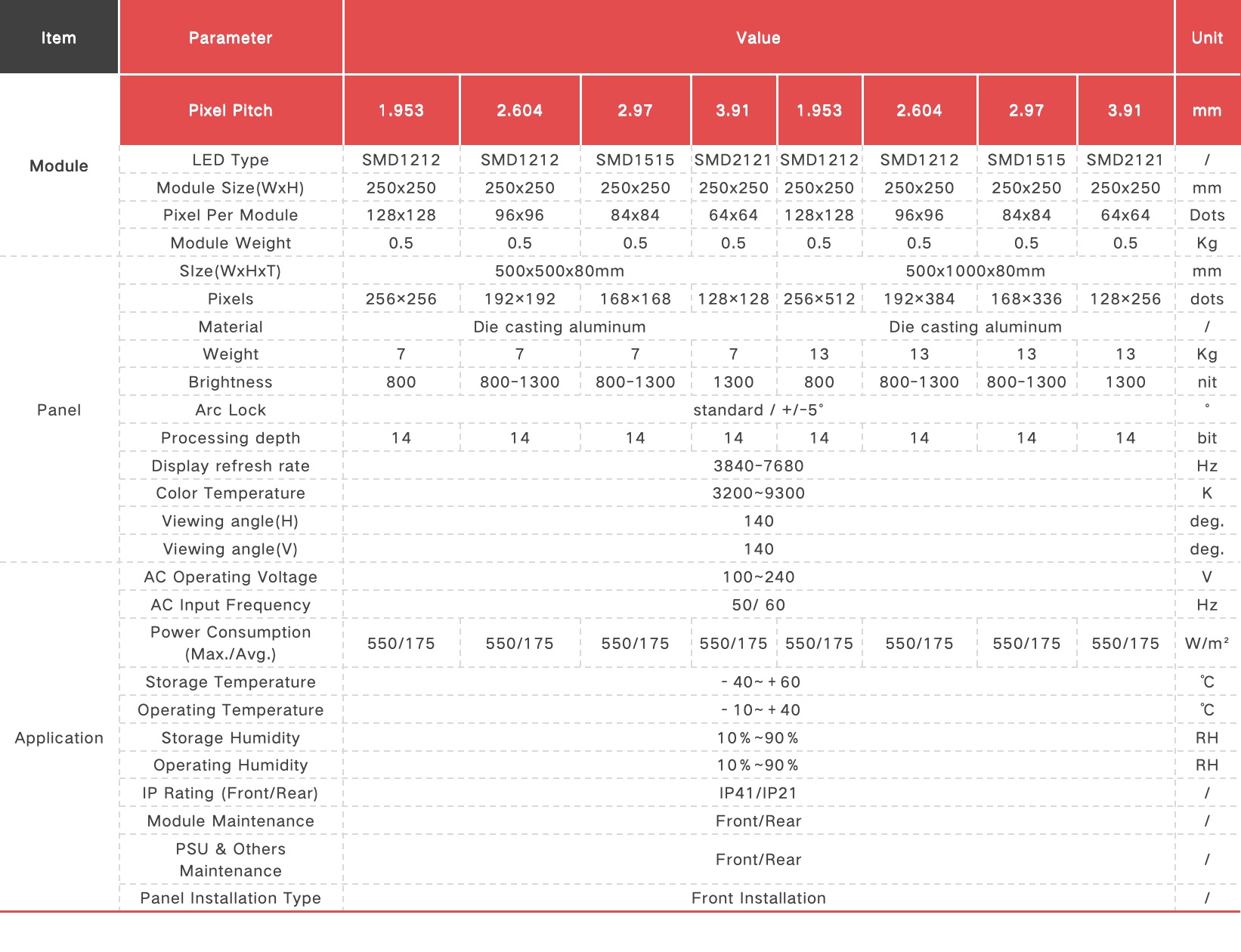

Indoor series specificationimage.png

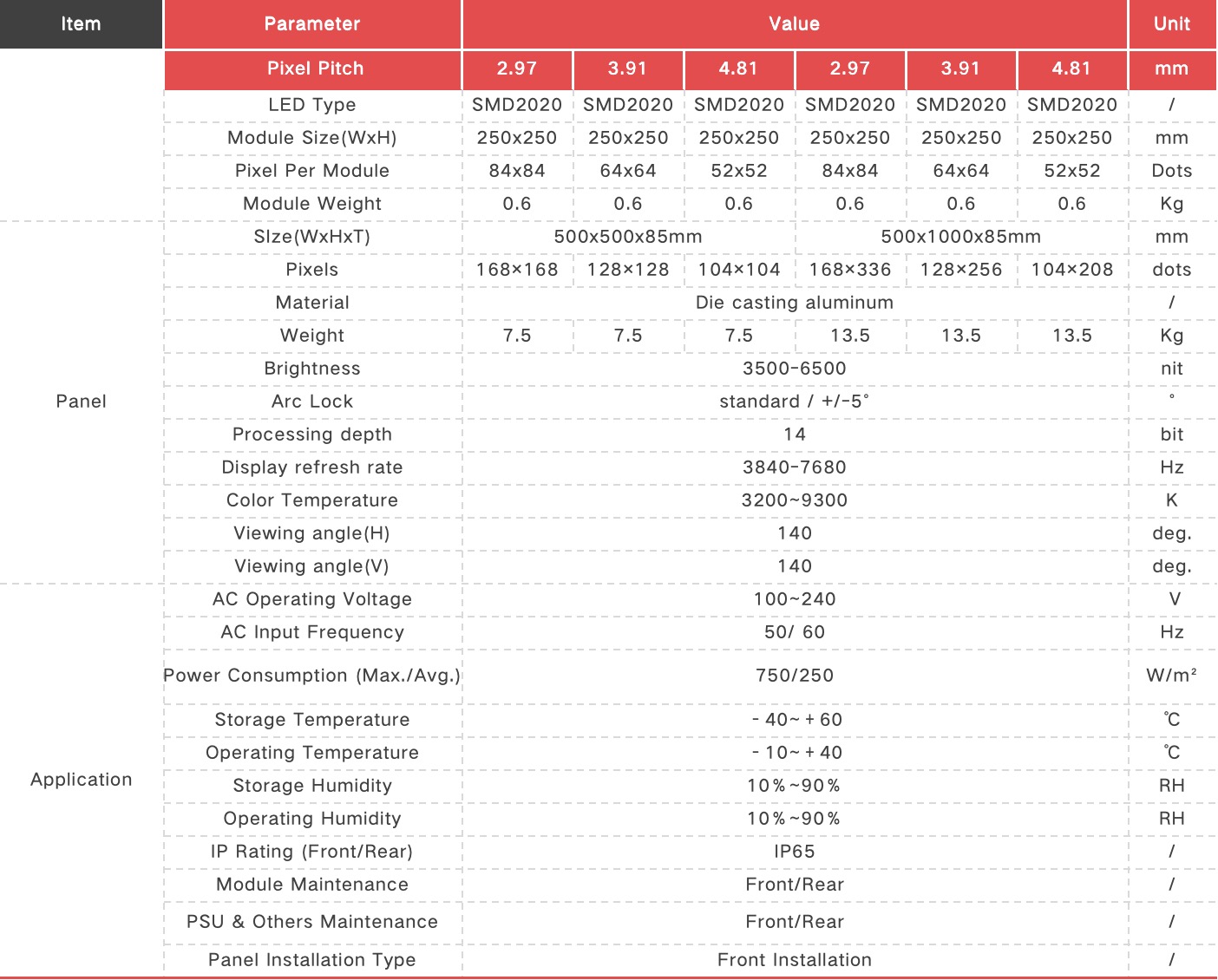

Outdoor series specification


Remark:Power consumption tolerance: ±15%, according to the actual situation.

Shenzhen CAPLED Electronics Co., Ltd.. reserves the right to modify specifications and parameters without further notice.

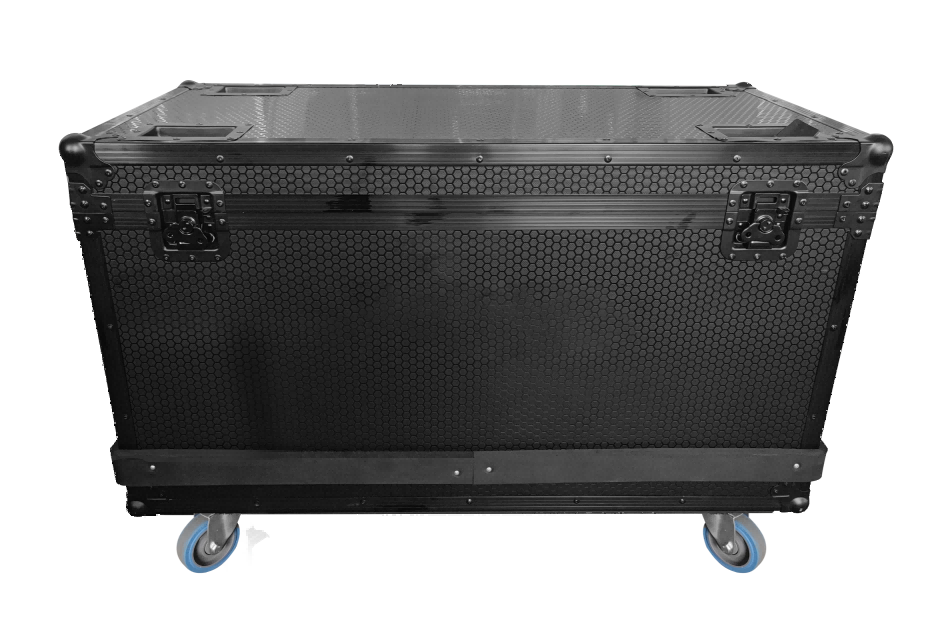

Cabinet Size

Cabinet Qty

Dimension

500*500mm

6in1

L760*W580*H730mm

500*500mm

8in1

L980*W580*H730mm

500*500mm

10in1

L1200*W580*H730mm

500*1000mm

4in1

L1100*W530*H730mm

500*1000mm

6in1

L1100*W760*H730mm

500*1000mm

8in1

L1100*W980*H730mm
